New Rendering Engine

Kivicube Scene Editor and Content Editor currently support two rendering engines: V1 and V2.

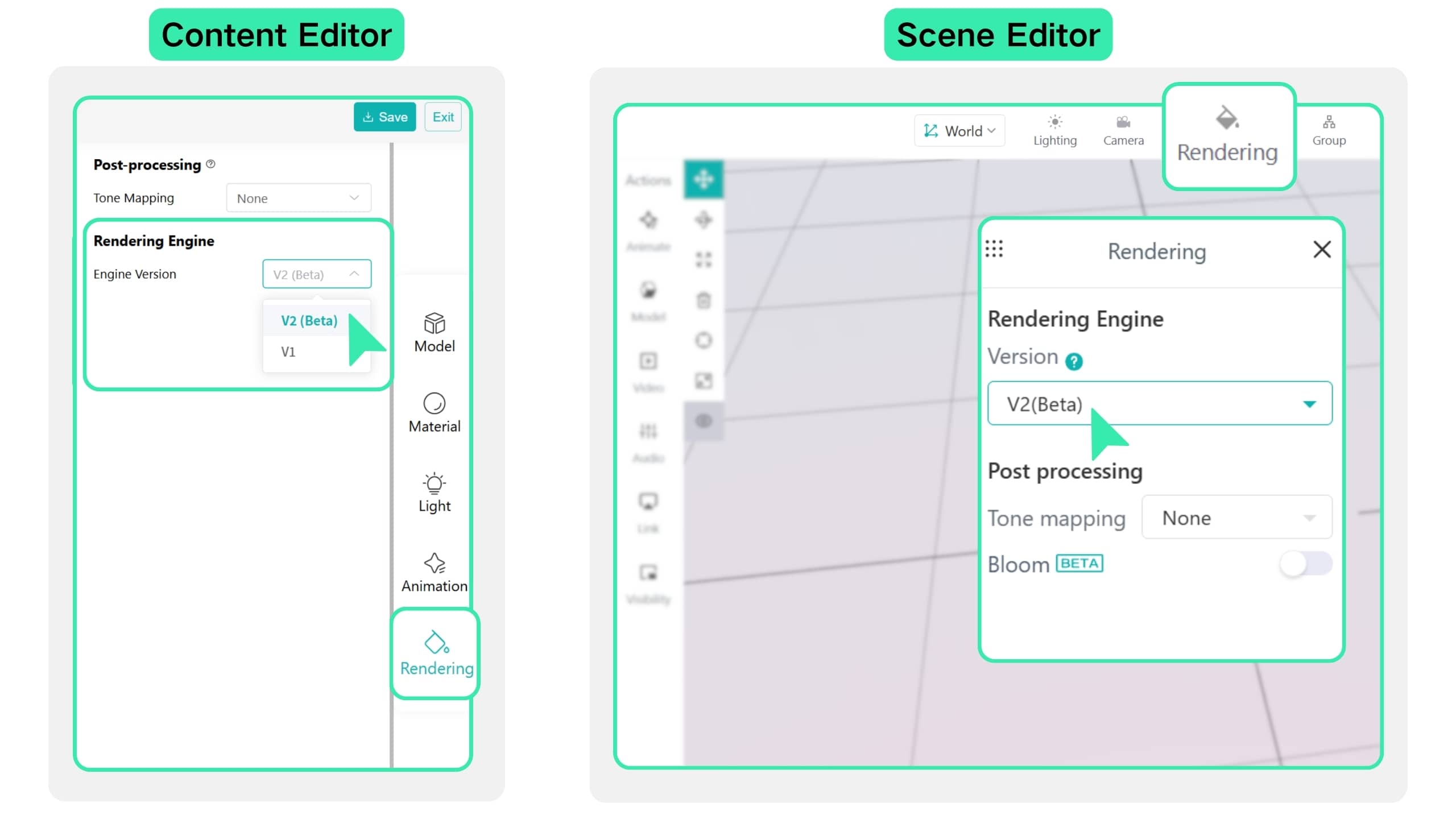

When you upload a 3D model or create a new scene, the V1 rendering engine is enabled by default. You can manually switch to the new V2 Rendering Engine to unlock more advanced material effects and rendering features.

Model Rendering Compatibility

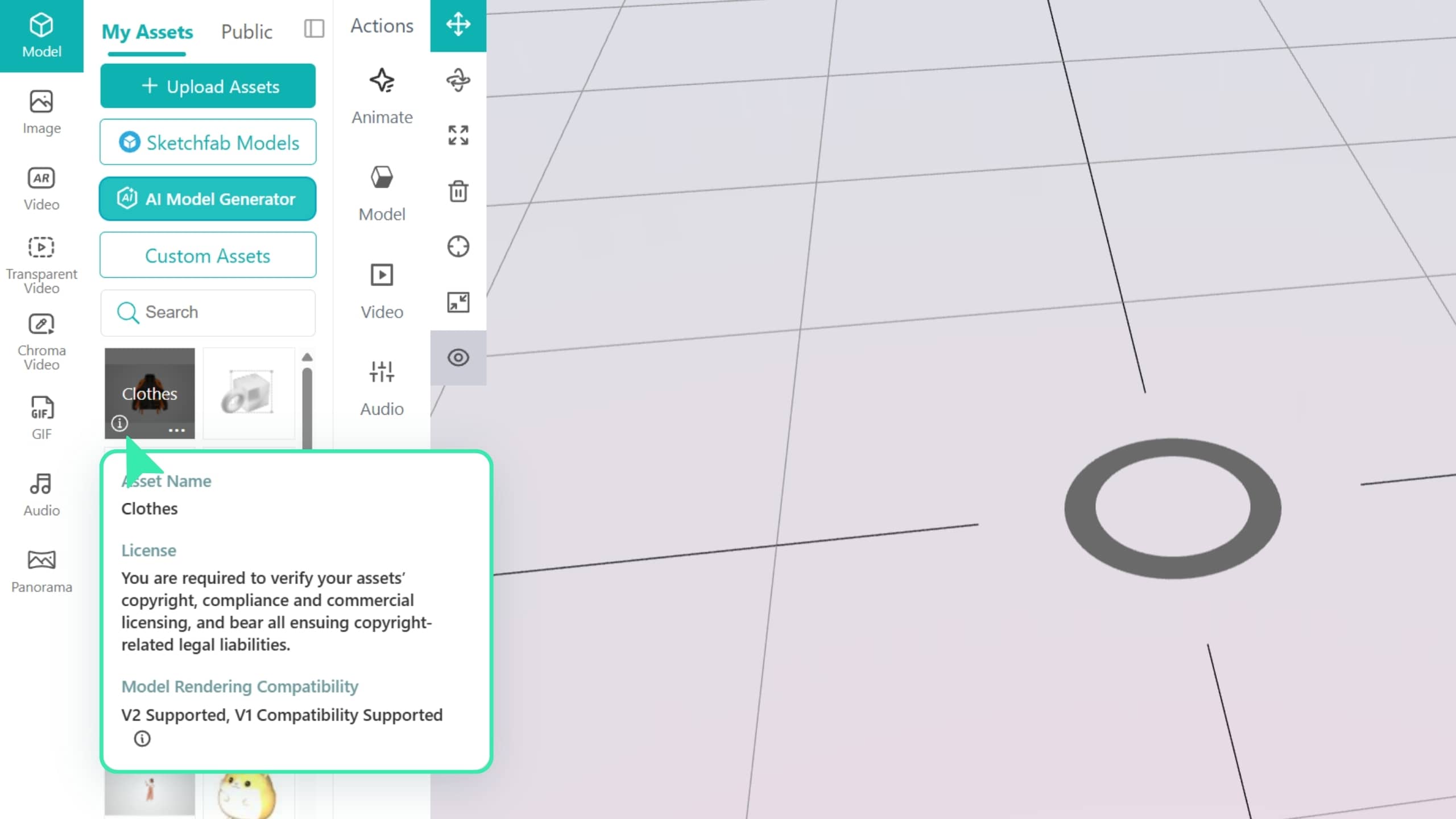

After uploading a model, hover over the icon in the bottom-left corner of the thumbnail to check its rendering compatibility.

Supported glTF Extensions

Extension	Supported Engine	Description
KHR_materials_unlit	V1 & V2	Unlit materials
KHR_texture_transform	V1 & V2
KHR_materials_pbrSpecularGlossiness	V1 & V2	V2 automatically converts them to the Metallic-Roughness workflow.
KHR_lights_punctual	V1 & V2
KHR_materials_anisotropy	V2
KHR_materials_clearcoat	V2
KHR_materials_dispersion	V2
KHR_materials_emissive_strength	V2
KHR_materials_ior	V2
KHR_materials_iridescence	V2
KHR_materials_sheen	V2
KHR_materials_specular	V2
KHR_materials_transmission	V2
KHR_materials_volume	V2
KHR_mesh_quantization	V2
EXT_mesh_gpu_instancing	V2

Rendering Preview

Rending Engine Effect	Example Scan to Experience	Type	Content Editor	Scene Editor	Web Experience

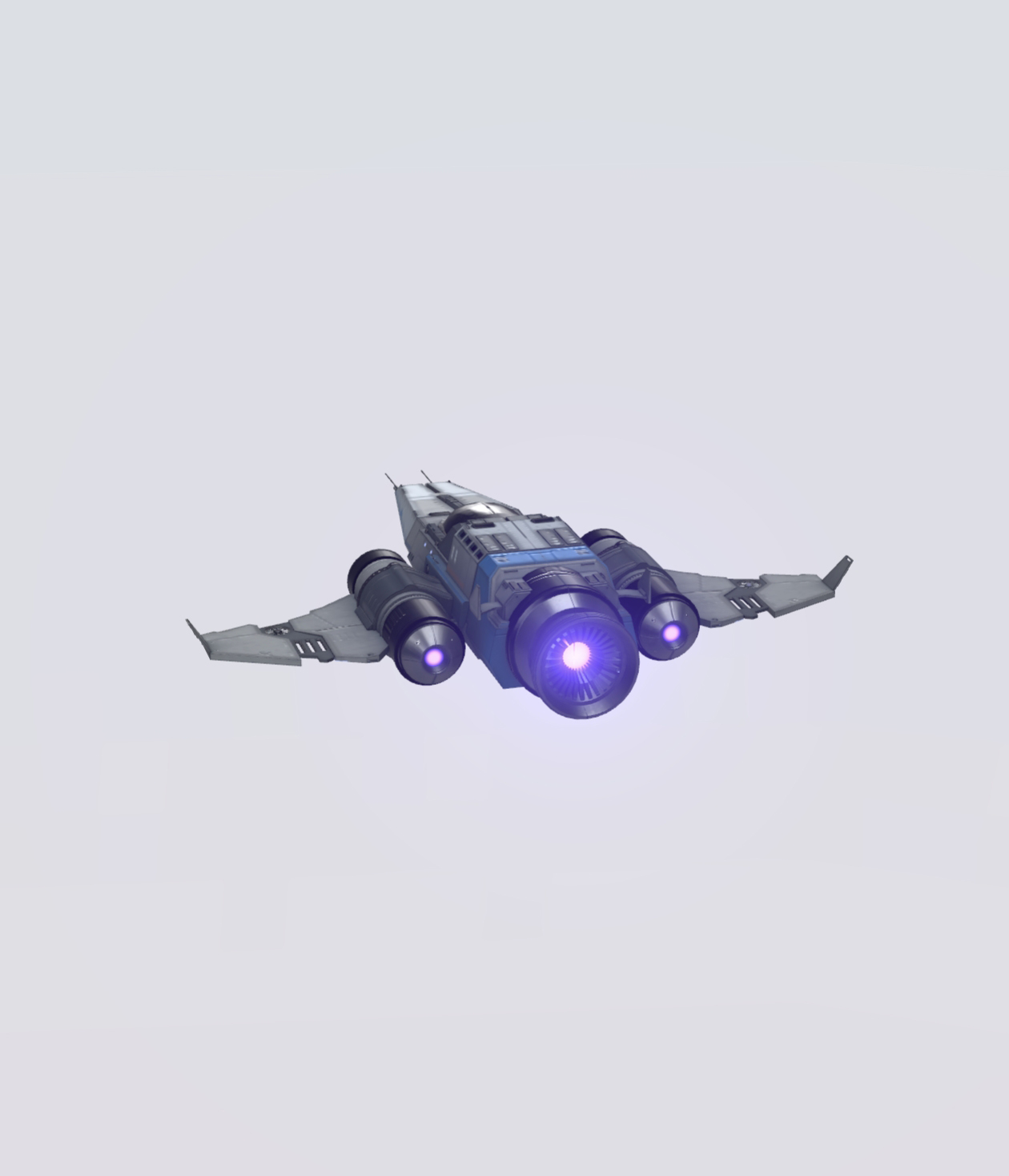

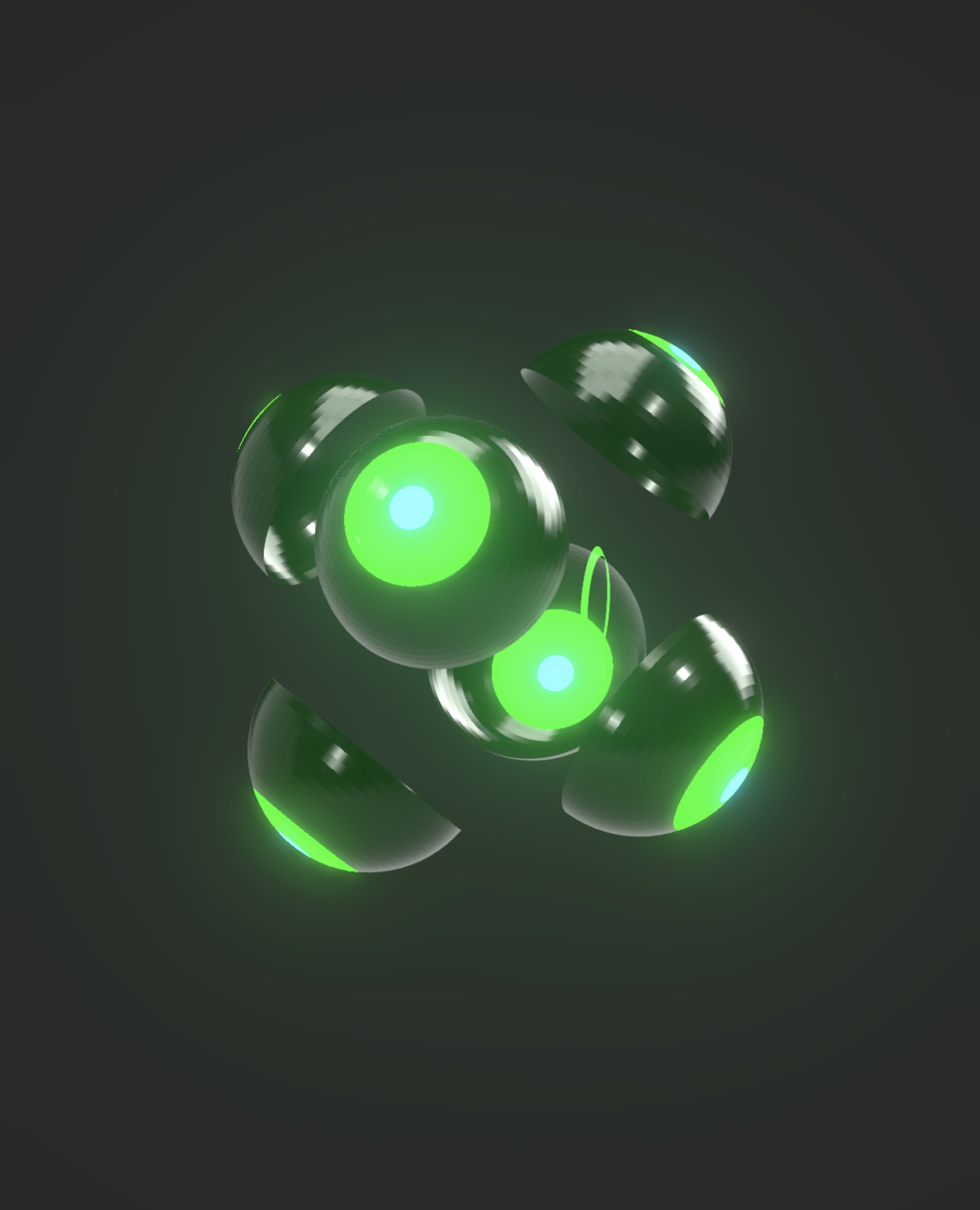

Bloom		Post-Processing	❌️	✅	✅
Outline		Effect	❌️	✅	✅

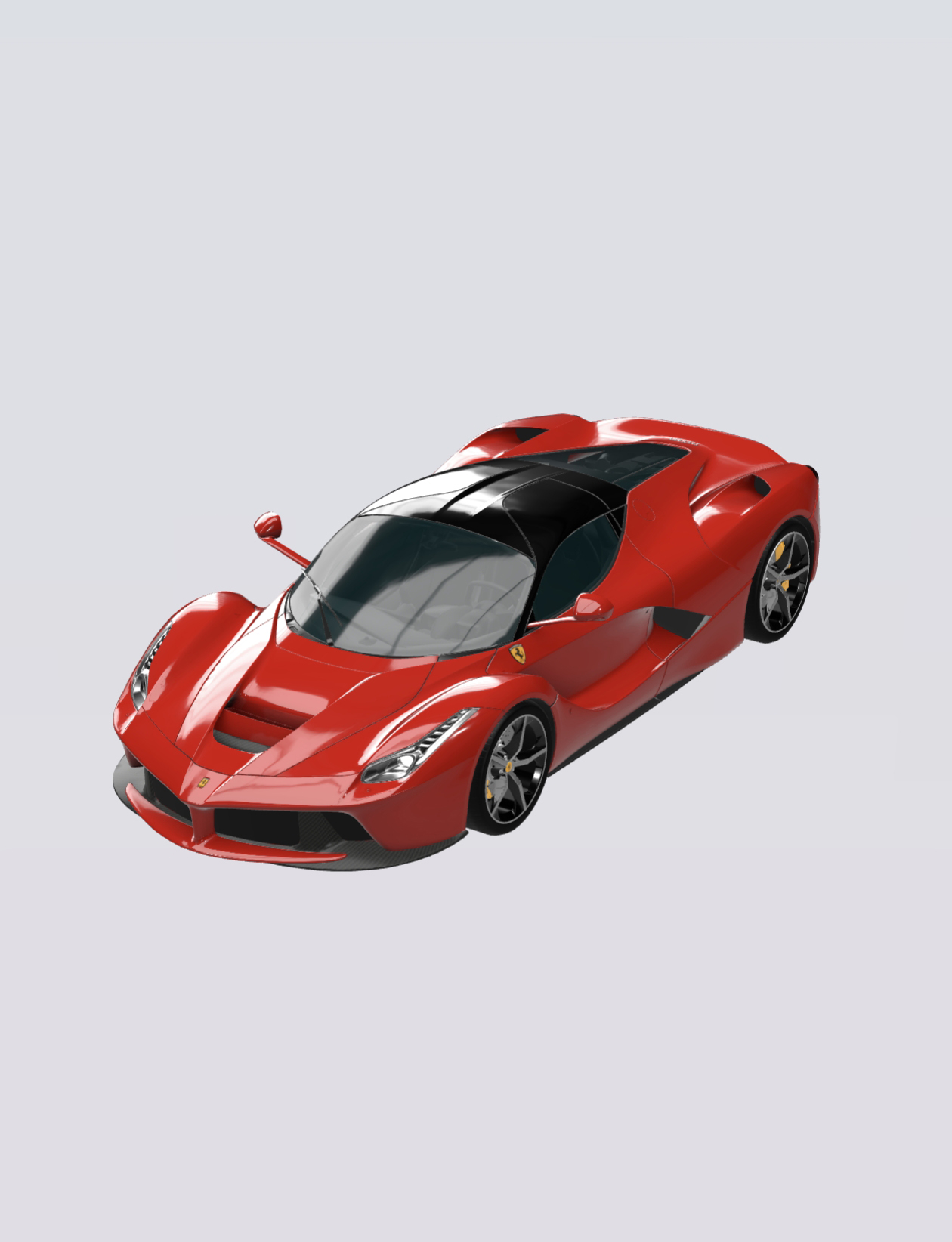

Clearcoat		Material Property	✅	✅	✅

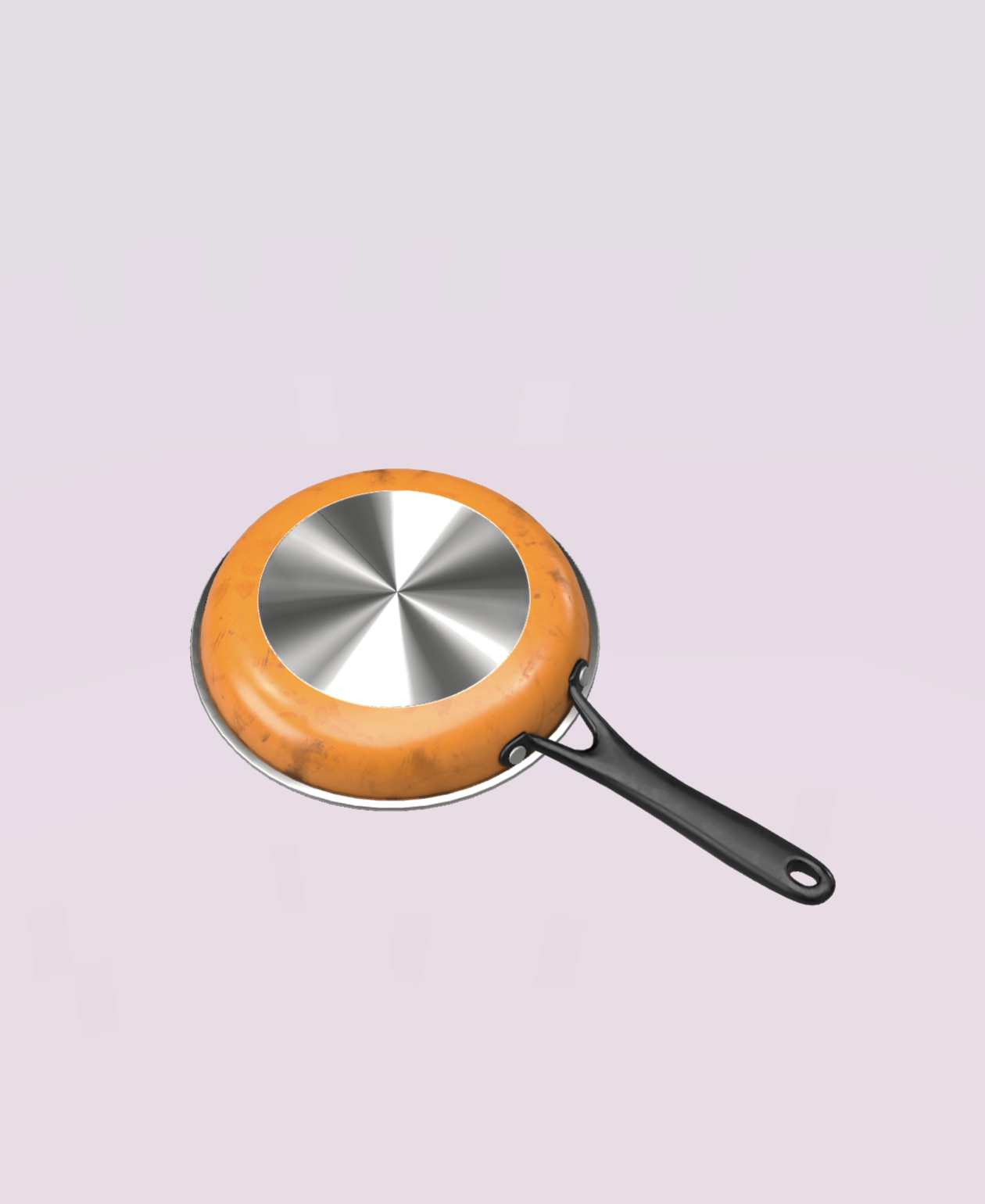

Anisotropy		Material Property	✅	✅	✅

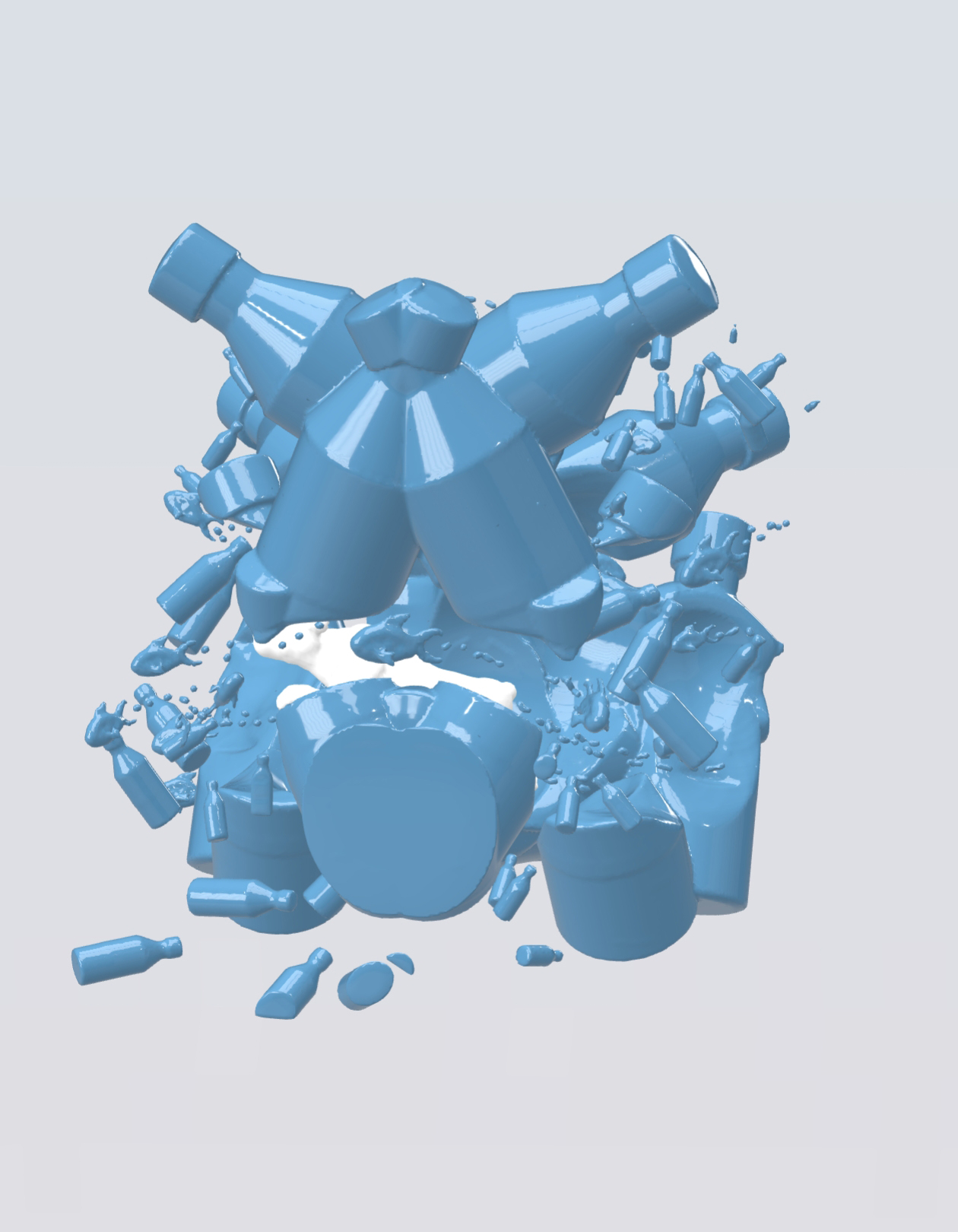

Specular		Material Property	✅	✅	✅

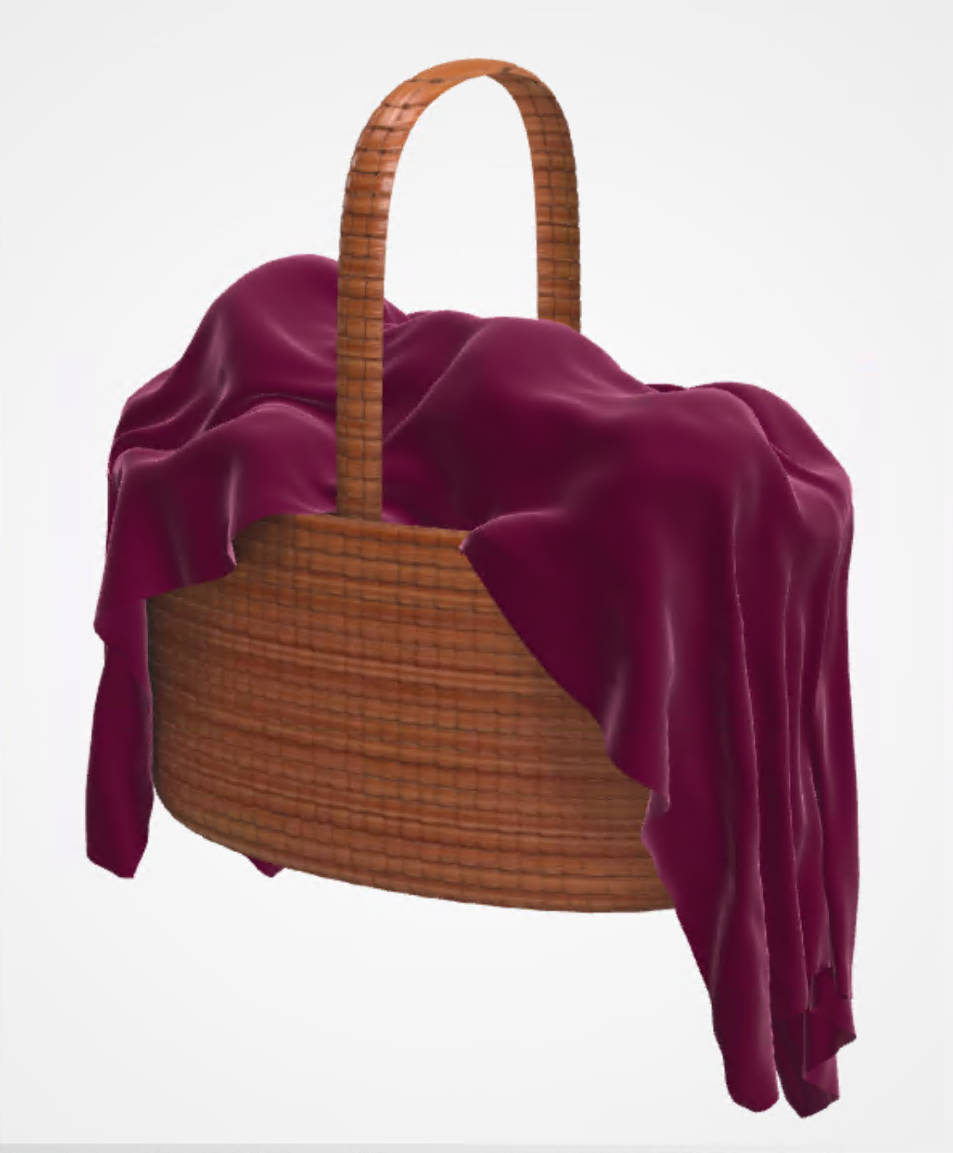

Sheen		Material Property	✅	✅	✅
Transmission		Material Property	✅	✅	✅

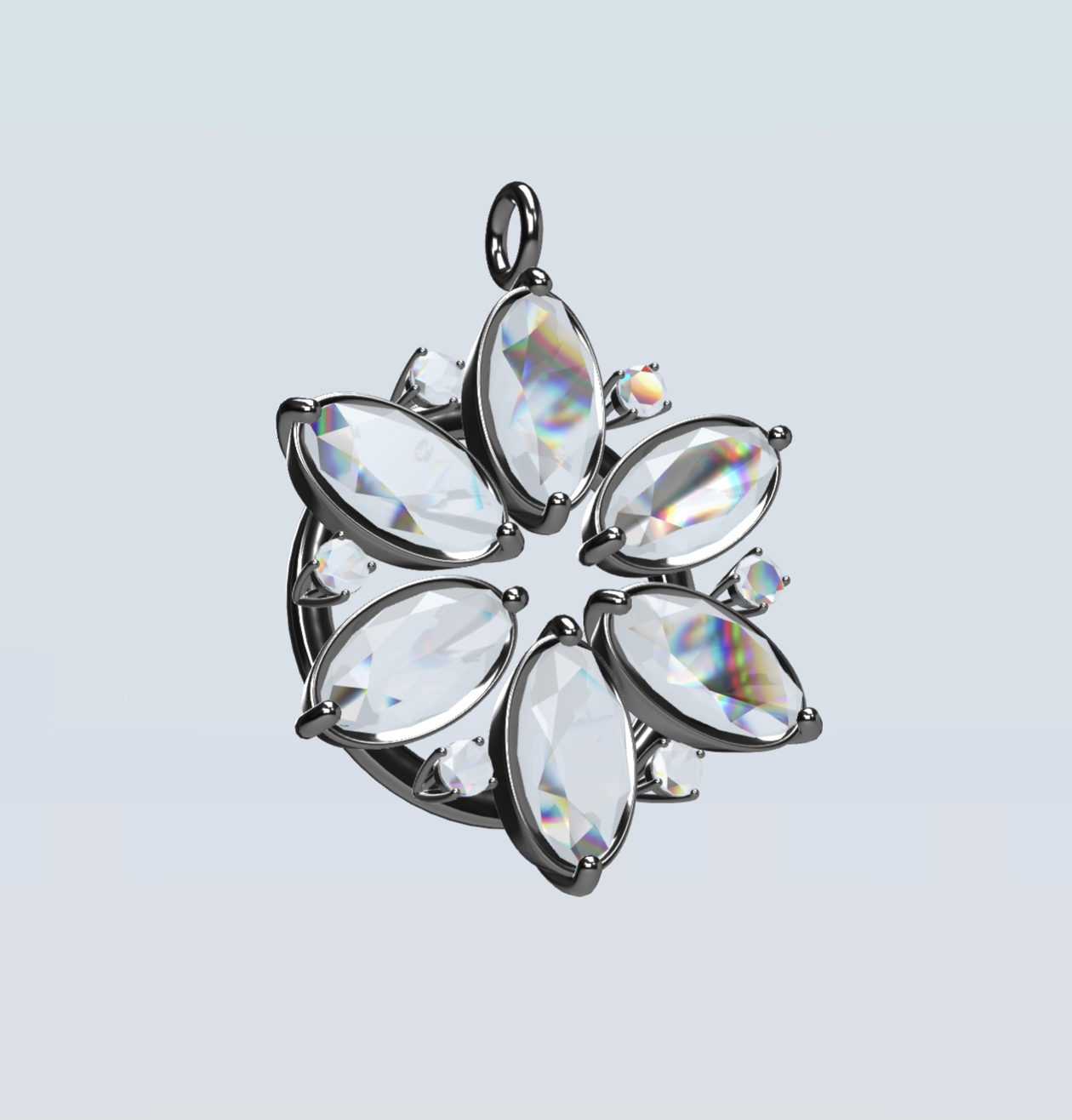

Dispersion		Material Property	✅	✅	✅

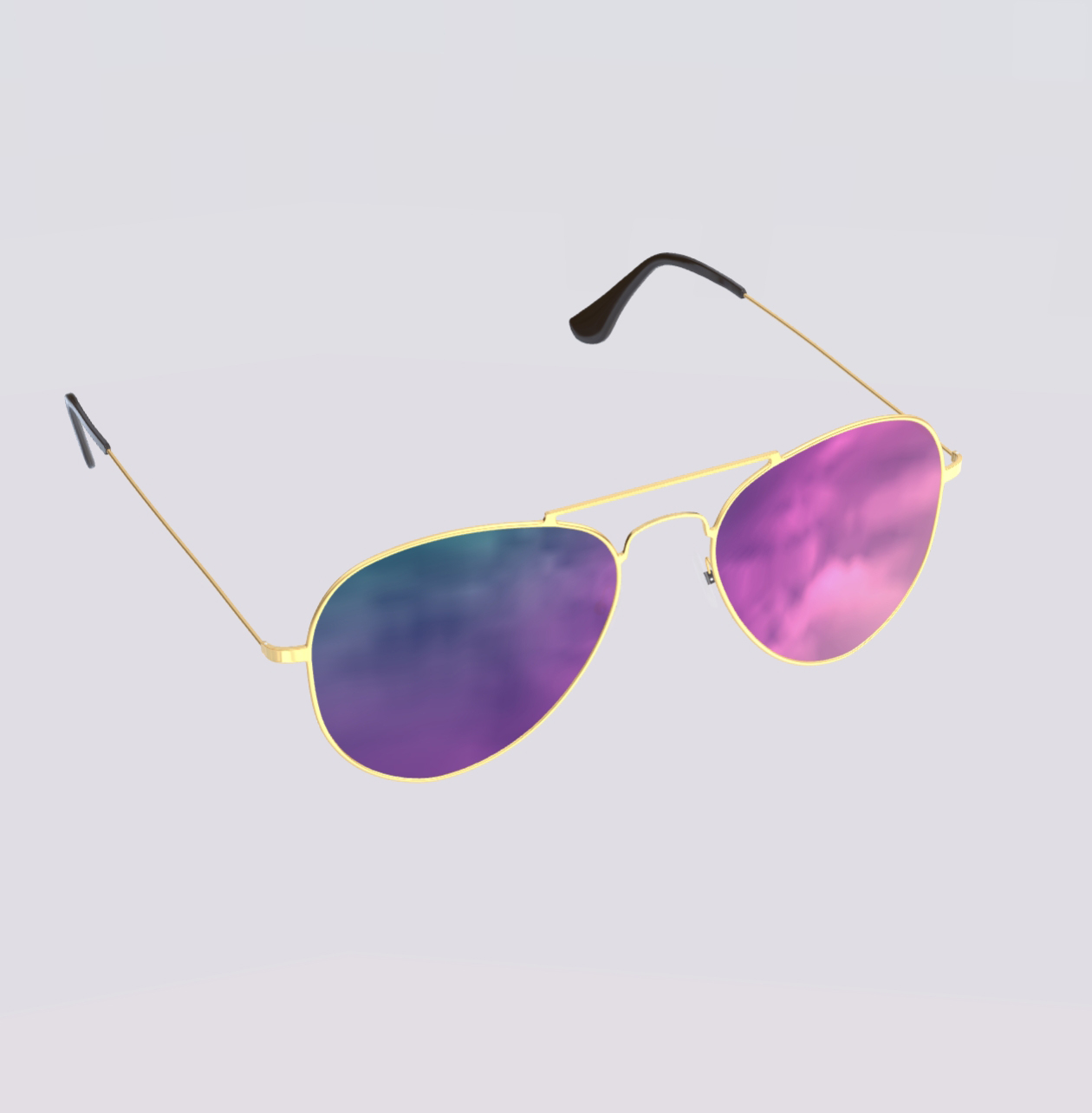

Iridescence		Material Property	✅	✅	✅

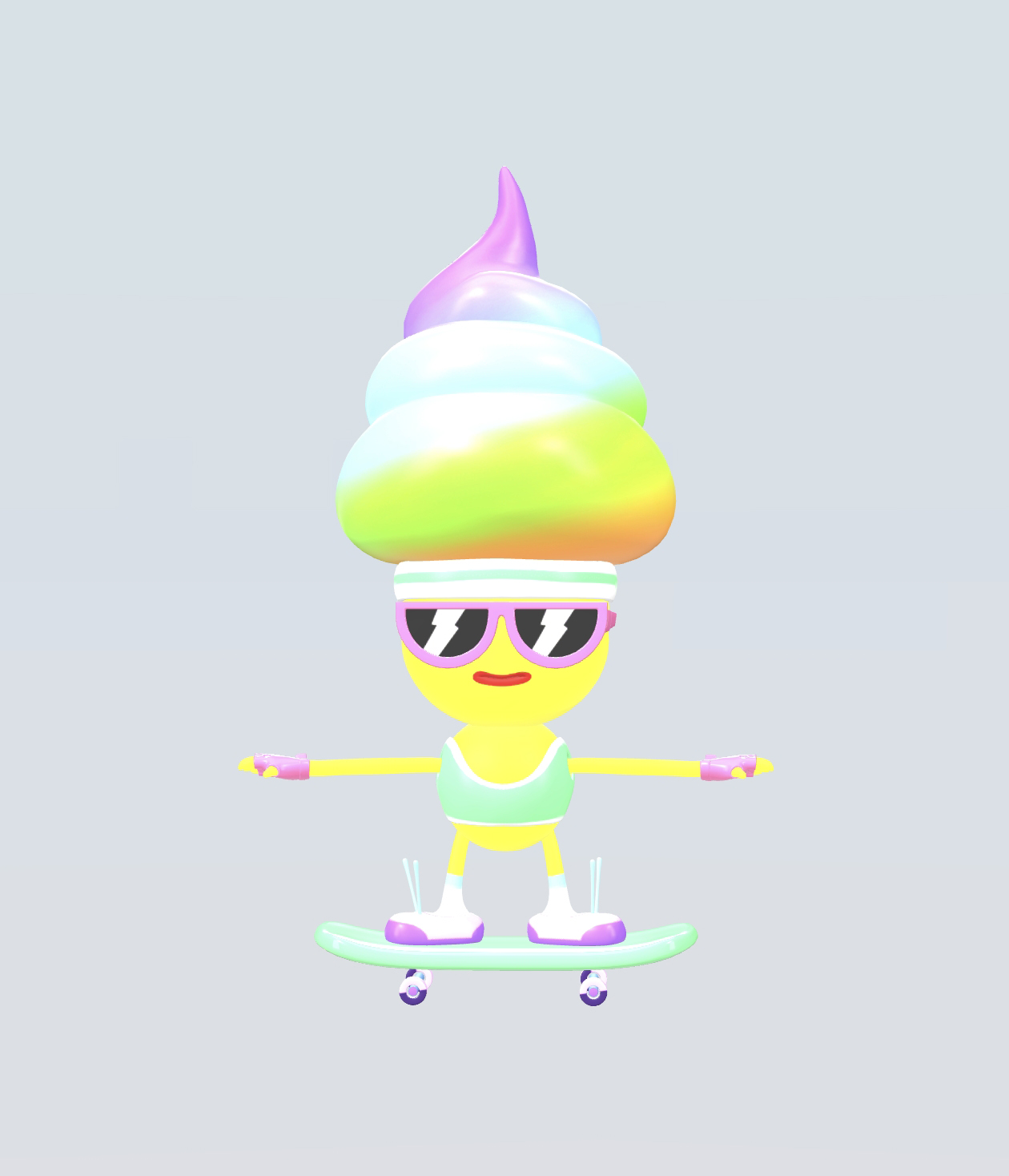

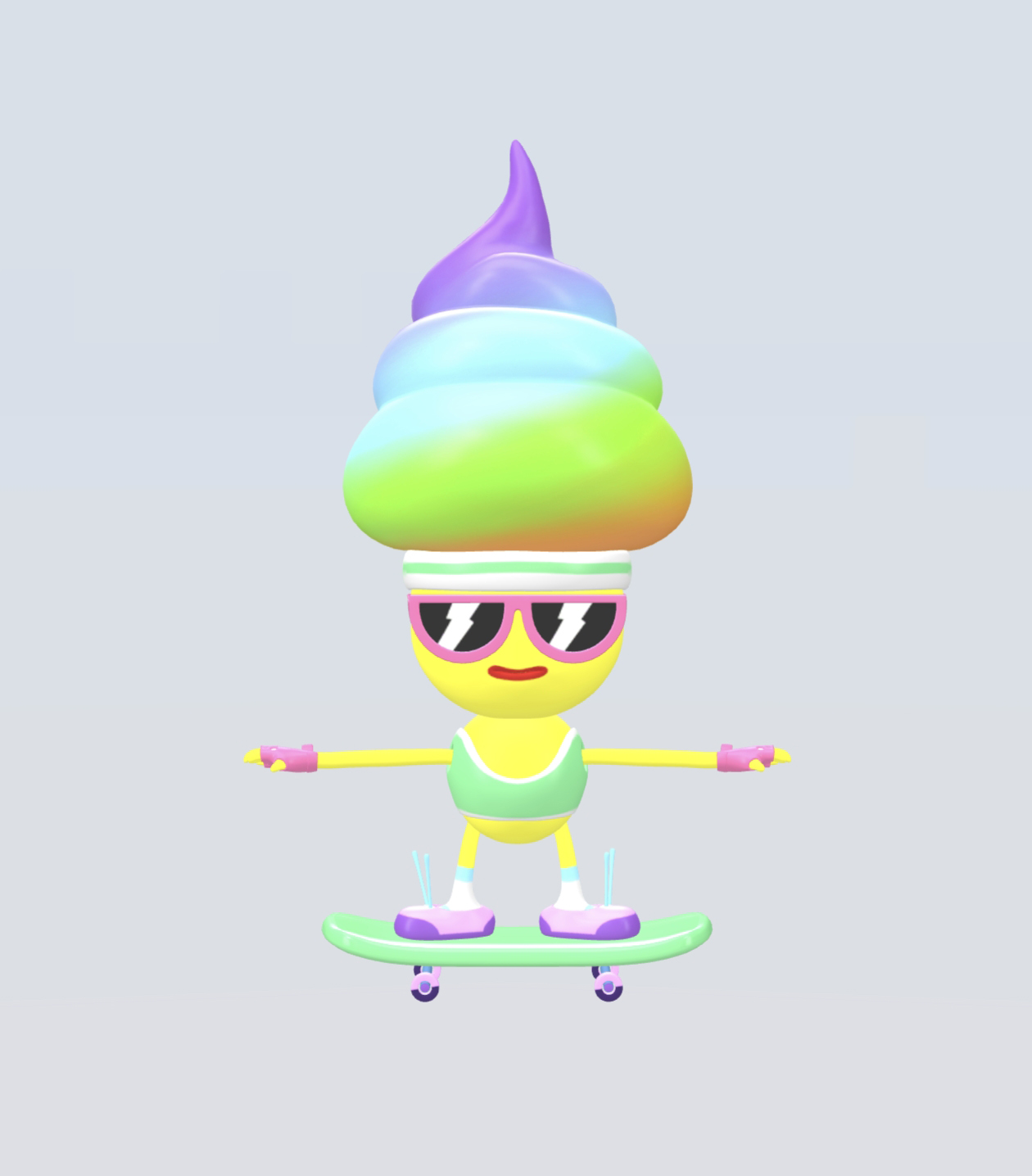

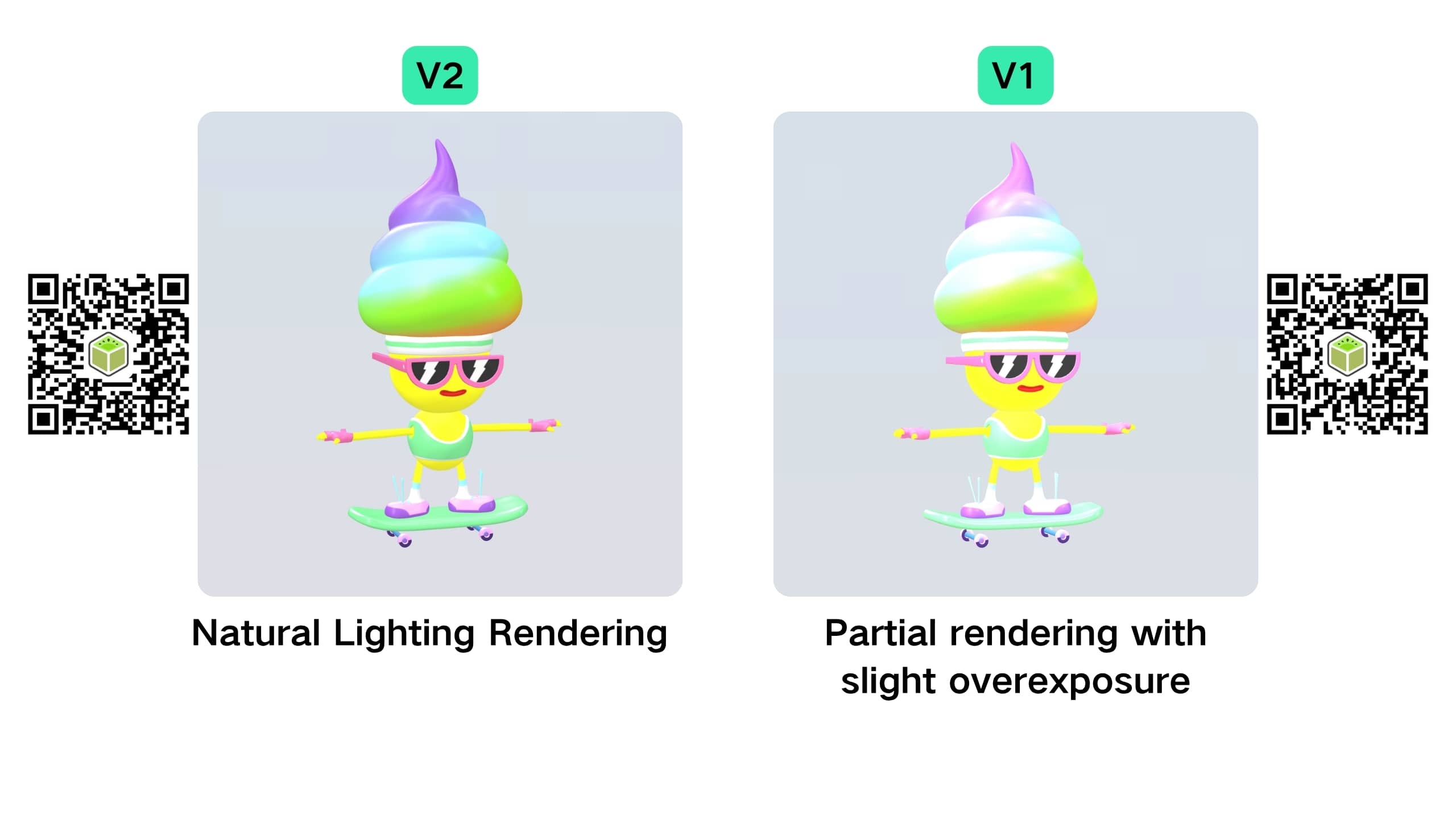

Lighting Rendering Upgrade		Core Rendering Algorithm	✅	✅	✅

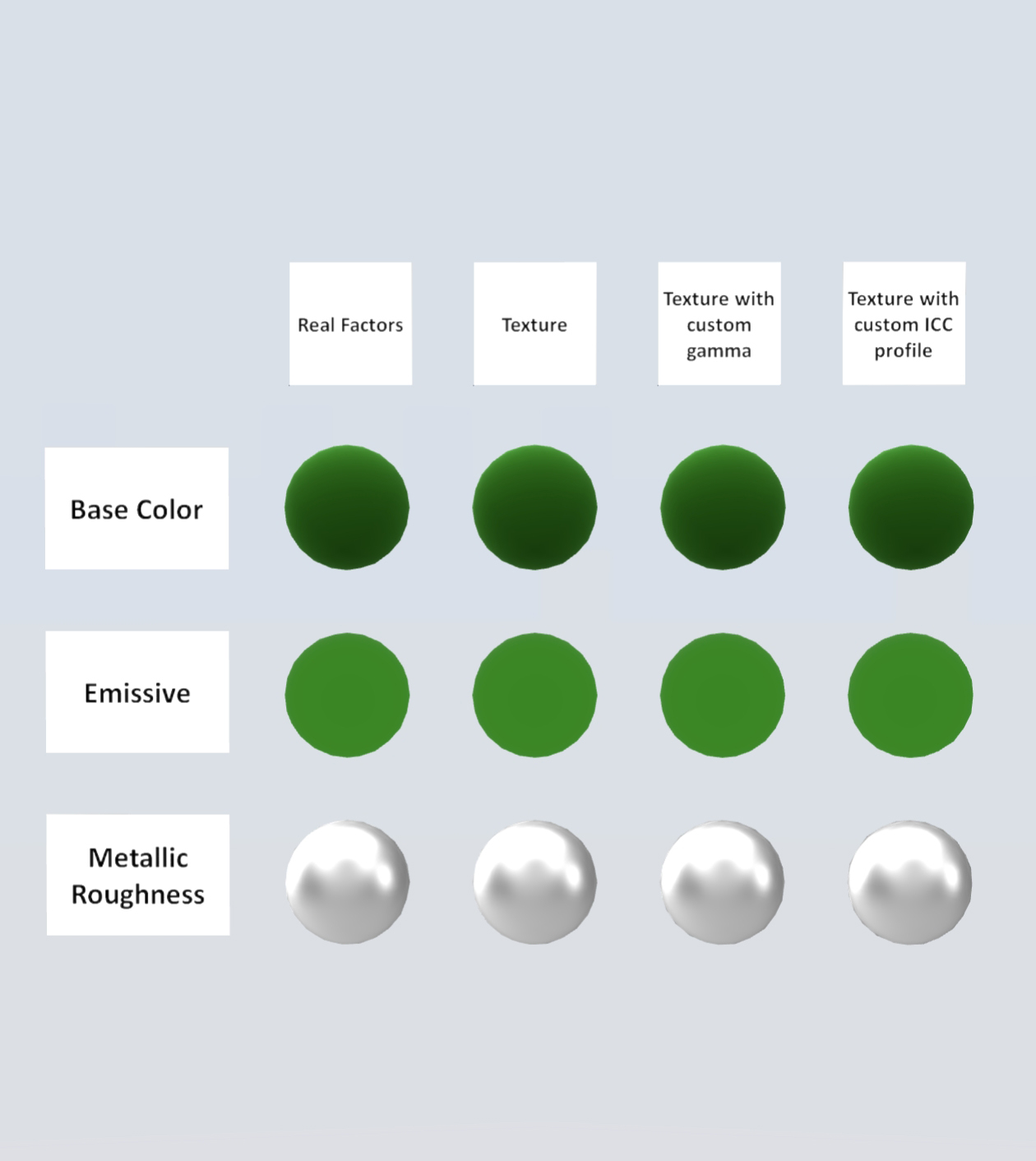

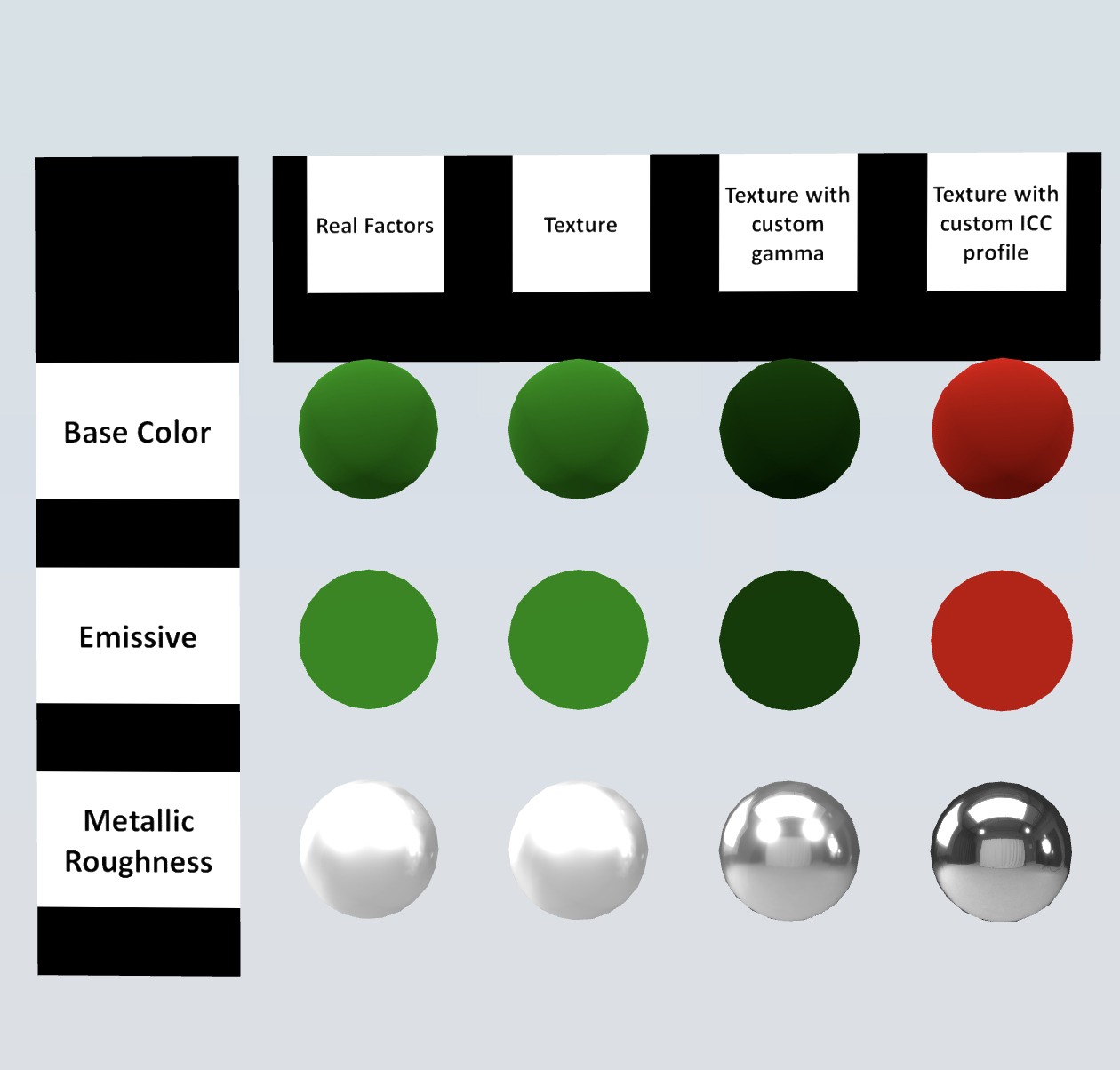

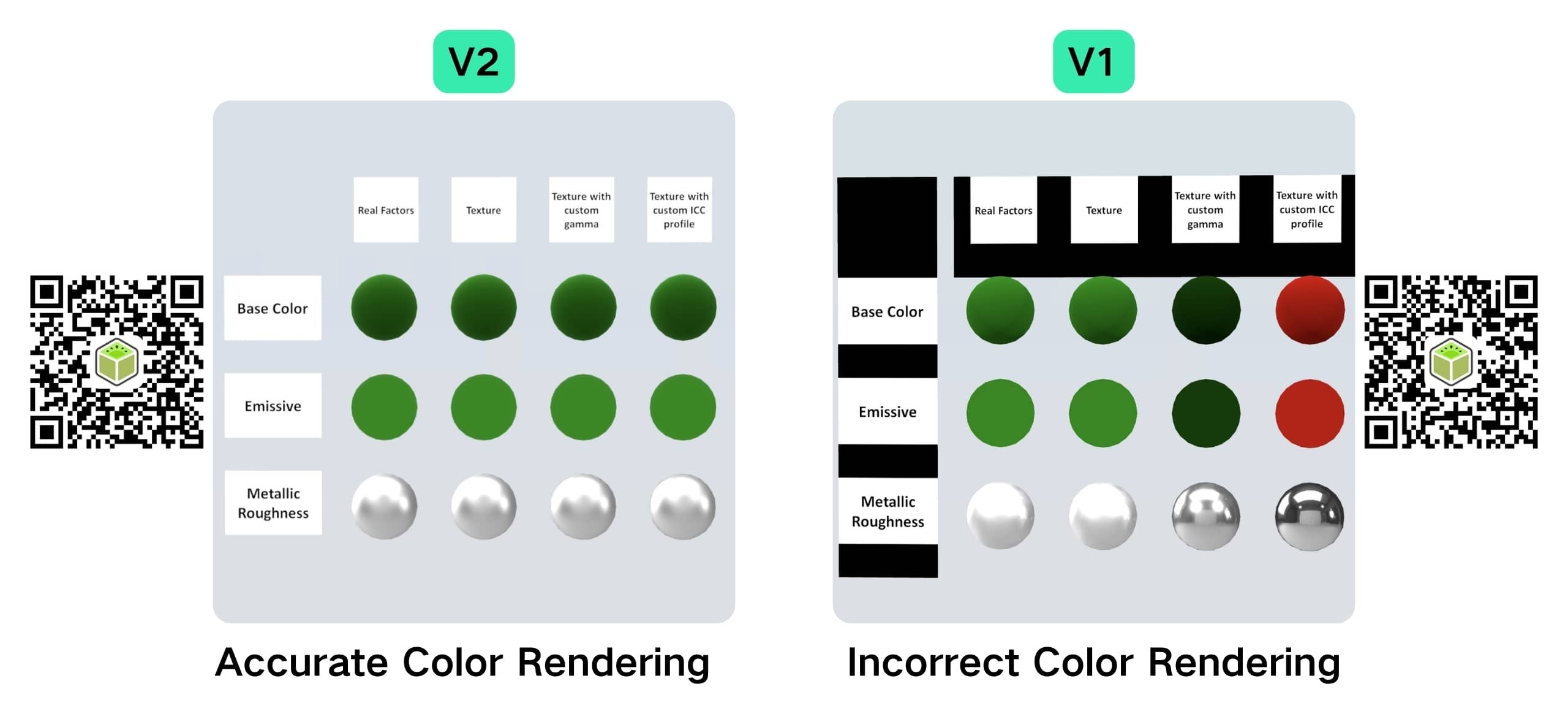

Texture Encoding Correct		Core Rendering Algorithm	✅	✅	✅

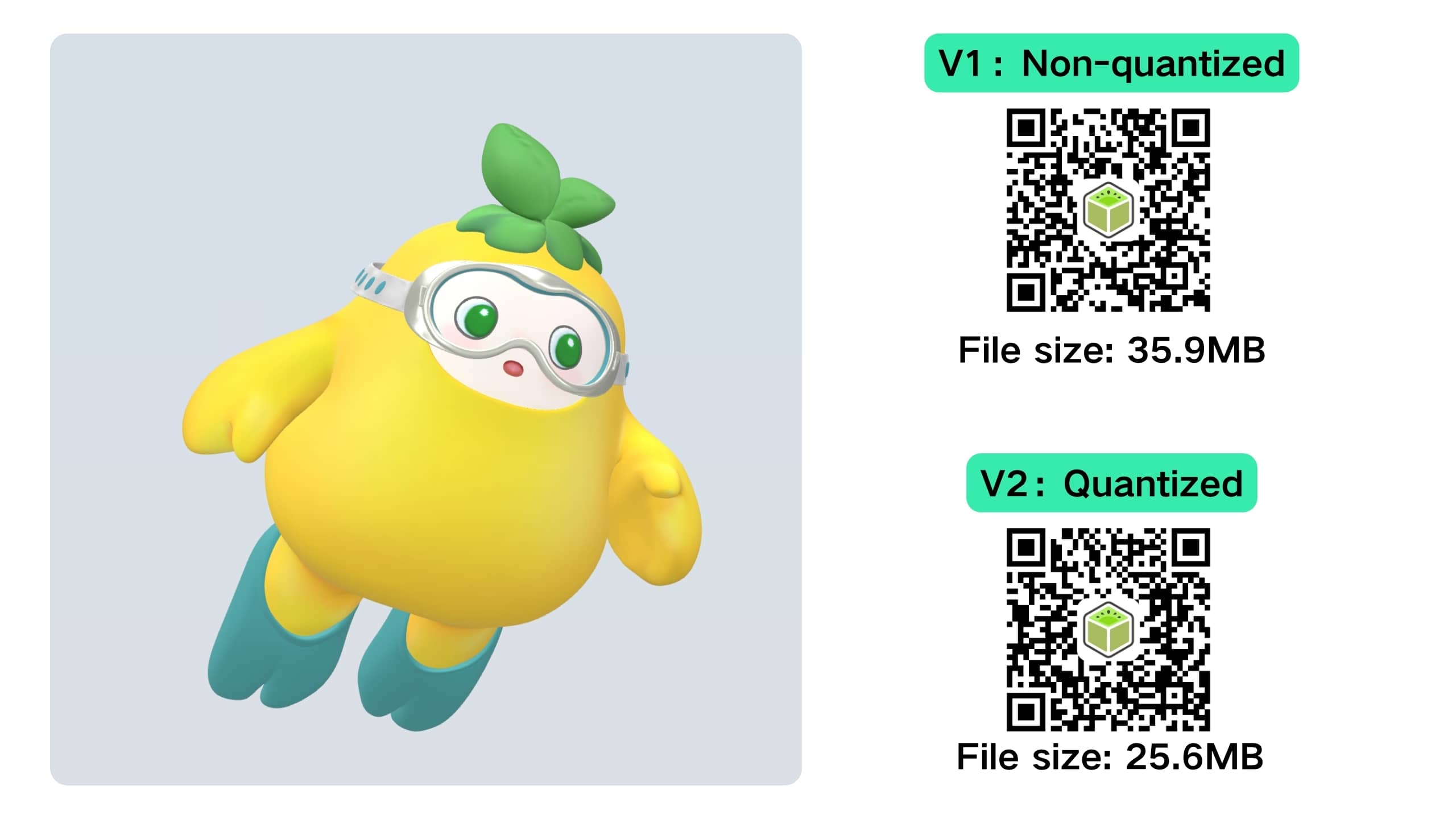

Quantization Compress		Core Rendering Algorithm	✅	✅	✅

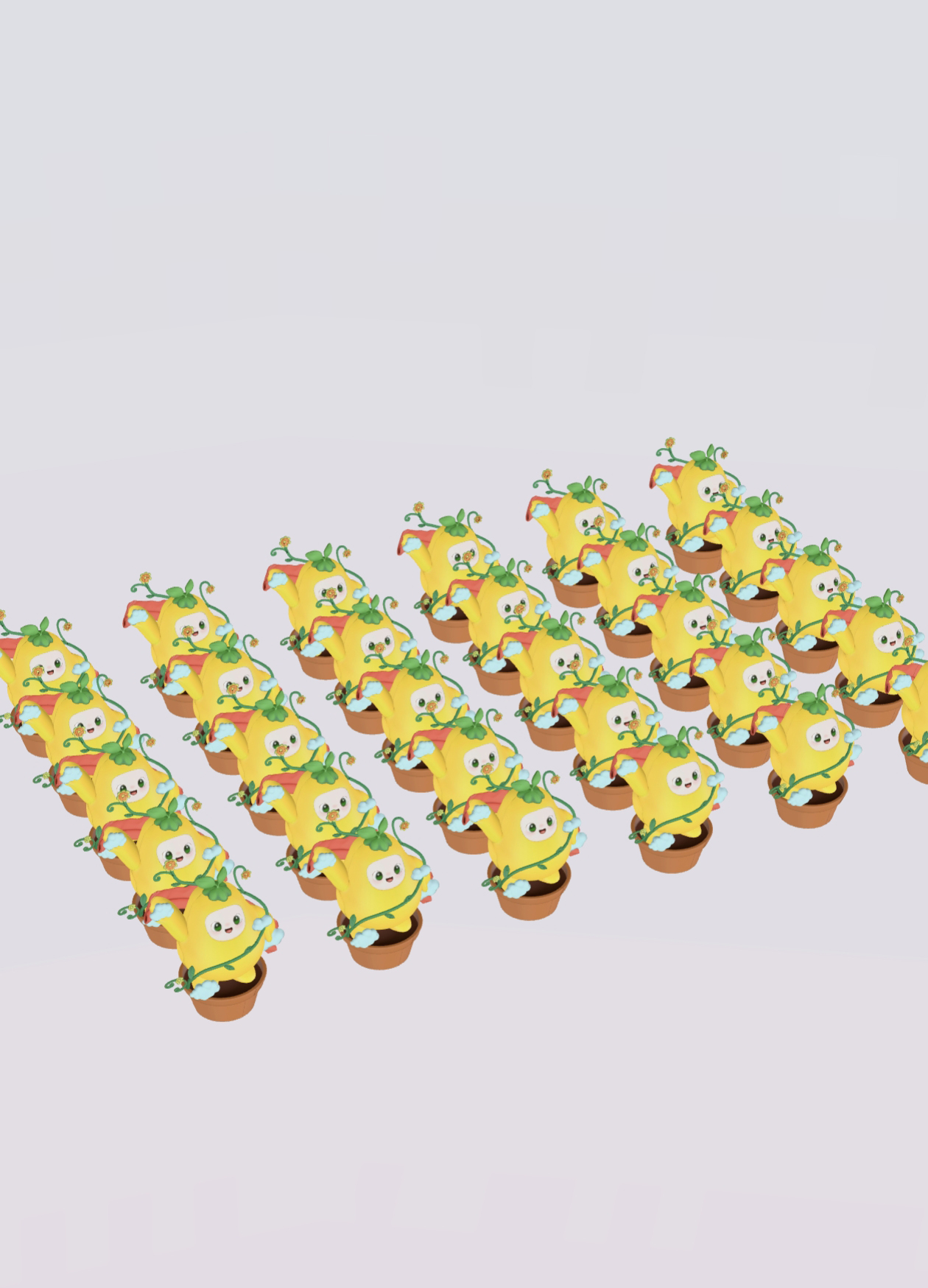

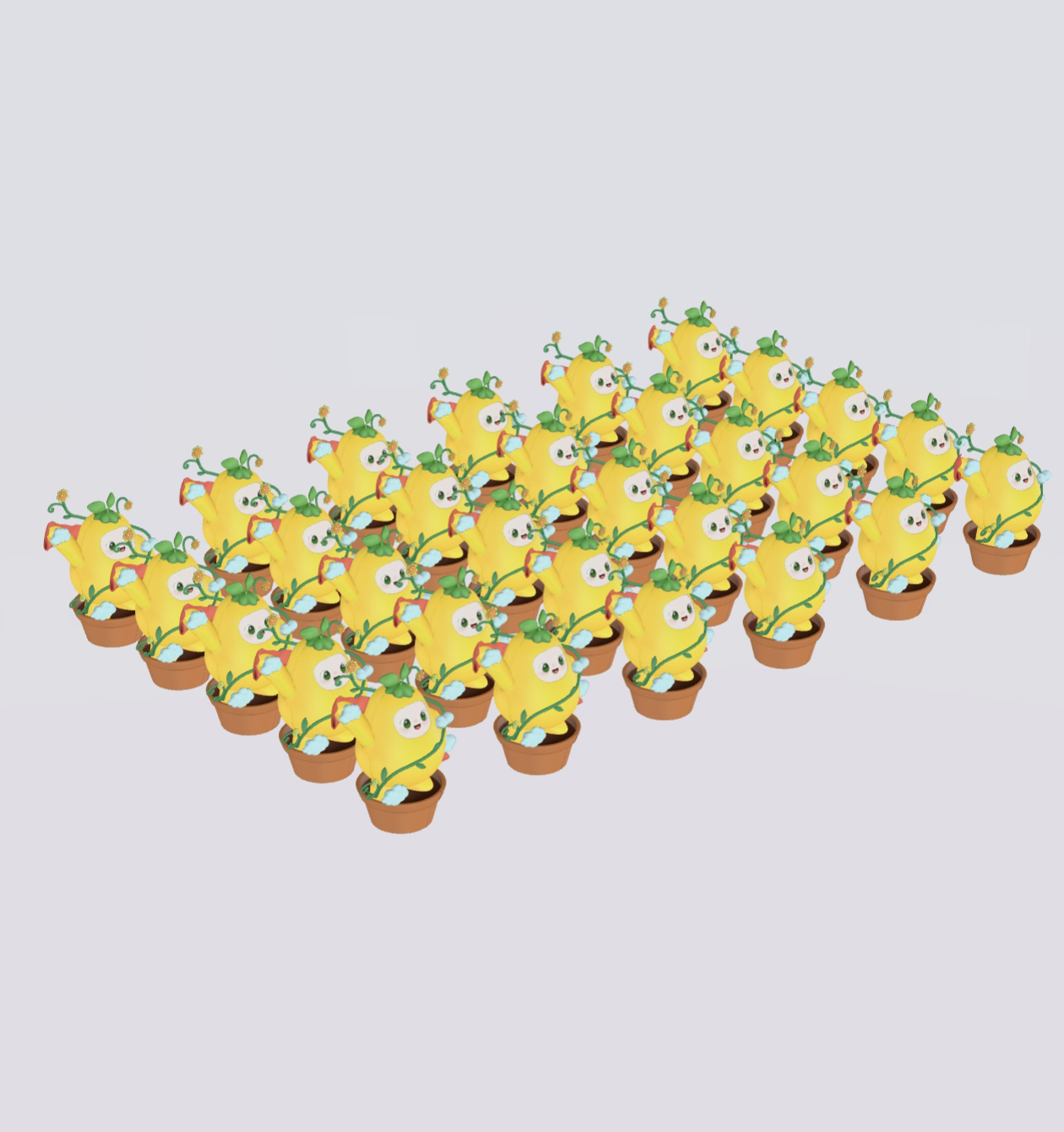

Instance		Software Processing	✅	✅	✅

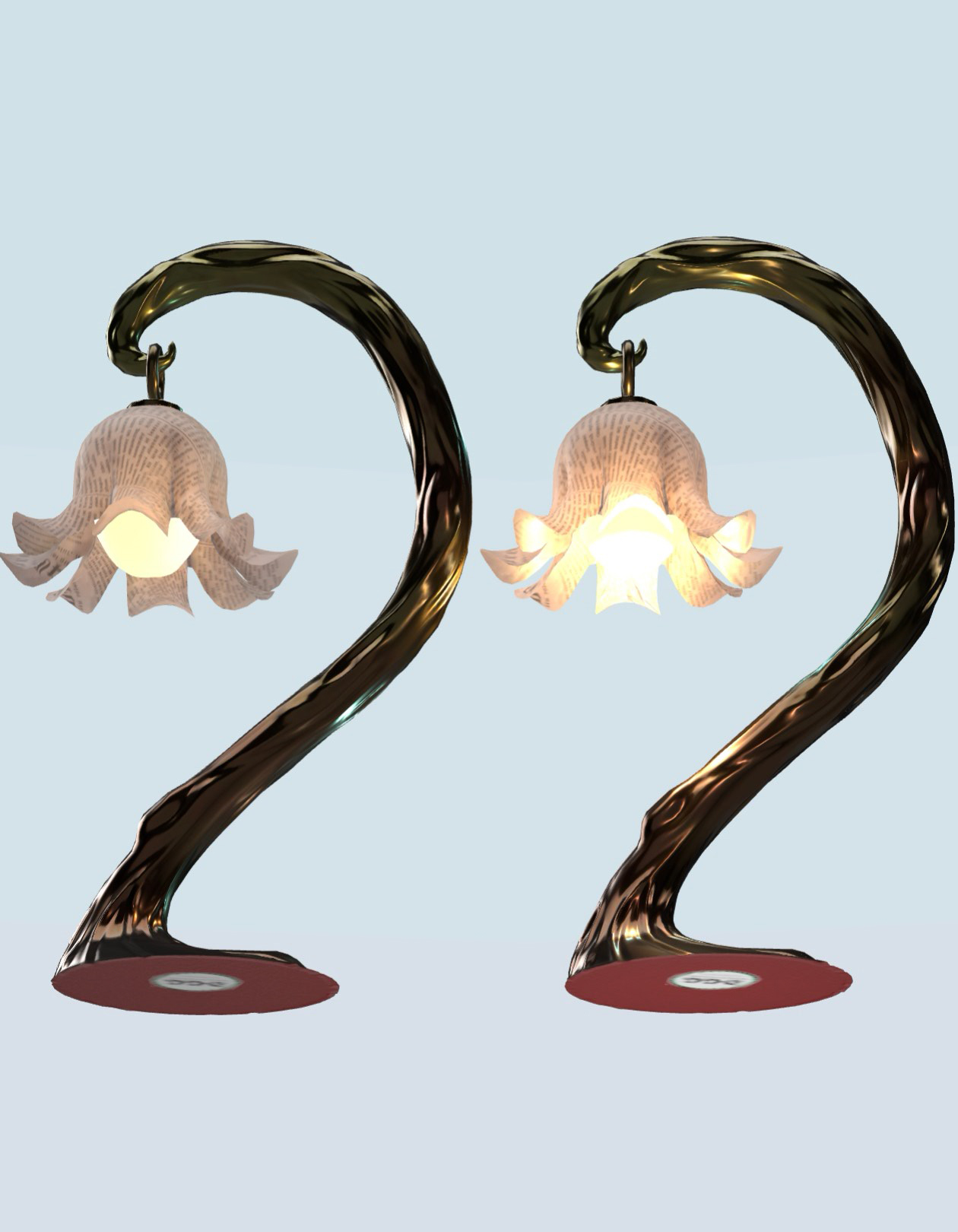

Built-in Light		Lighting	✅	✅	✅

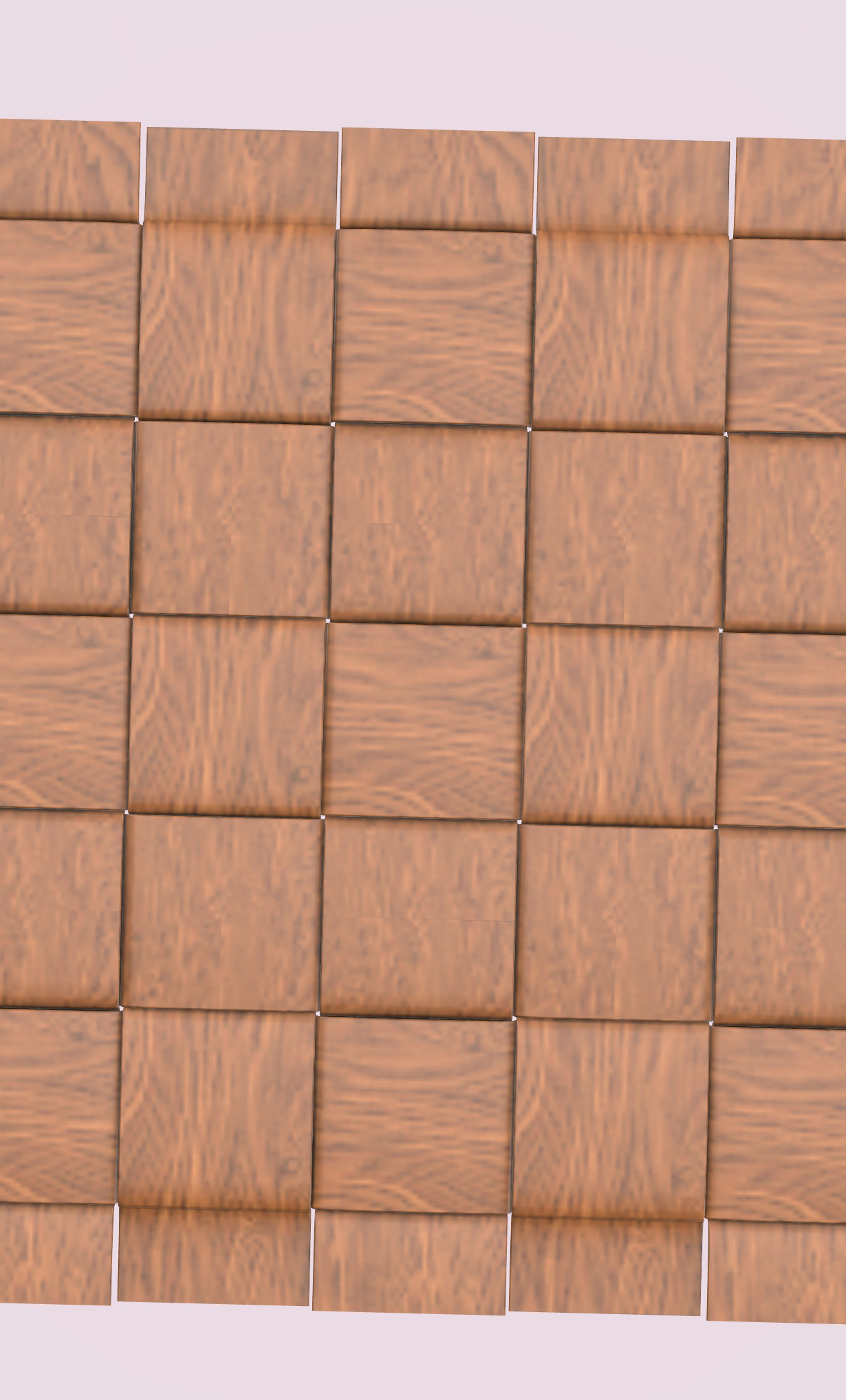

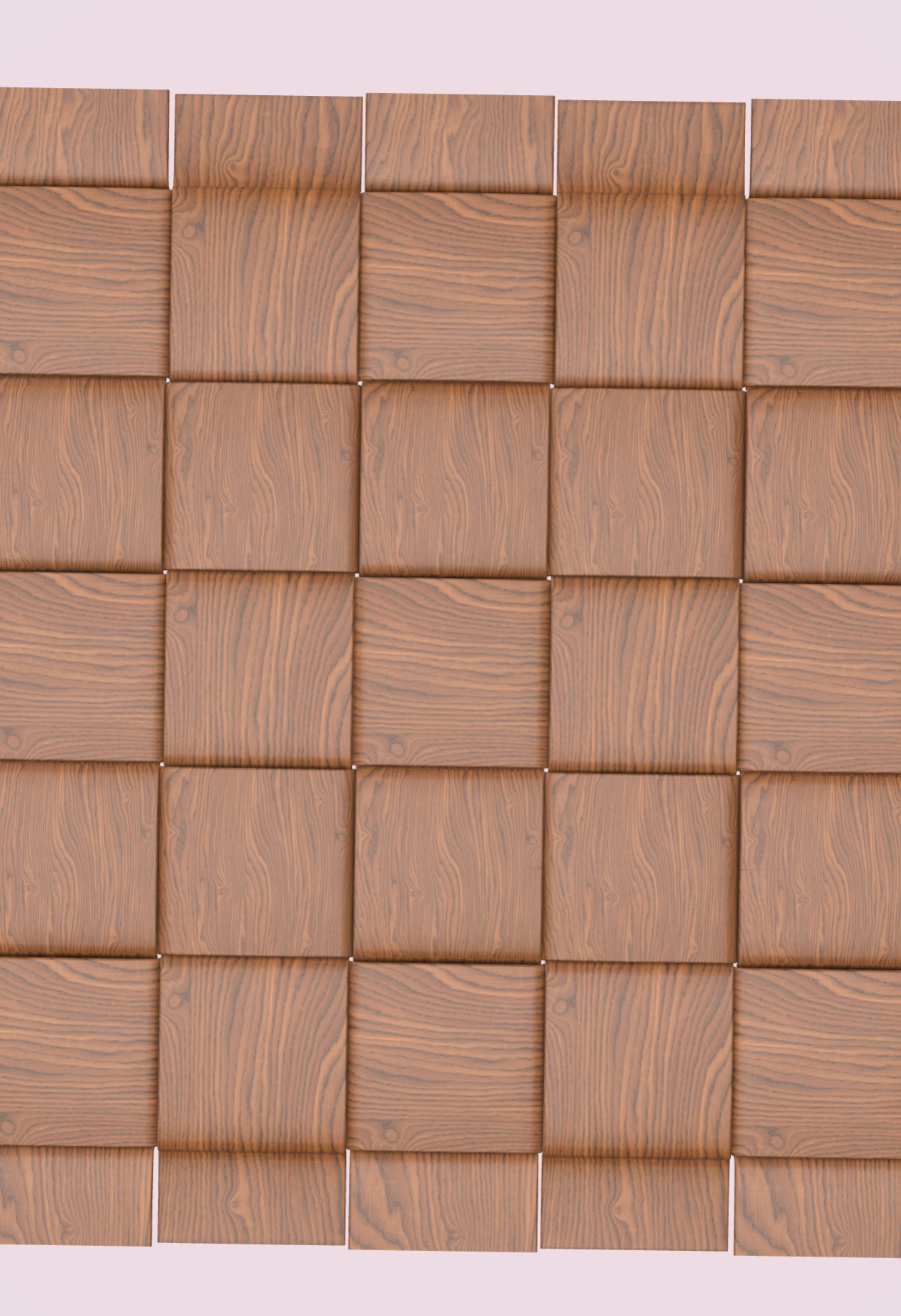

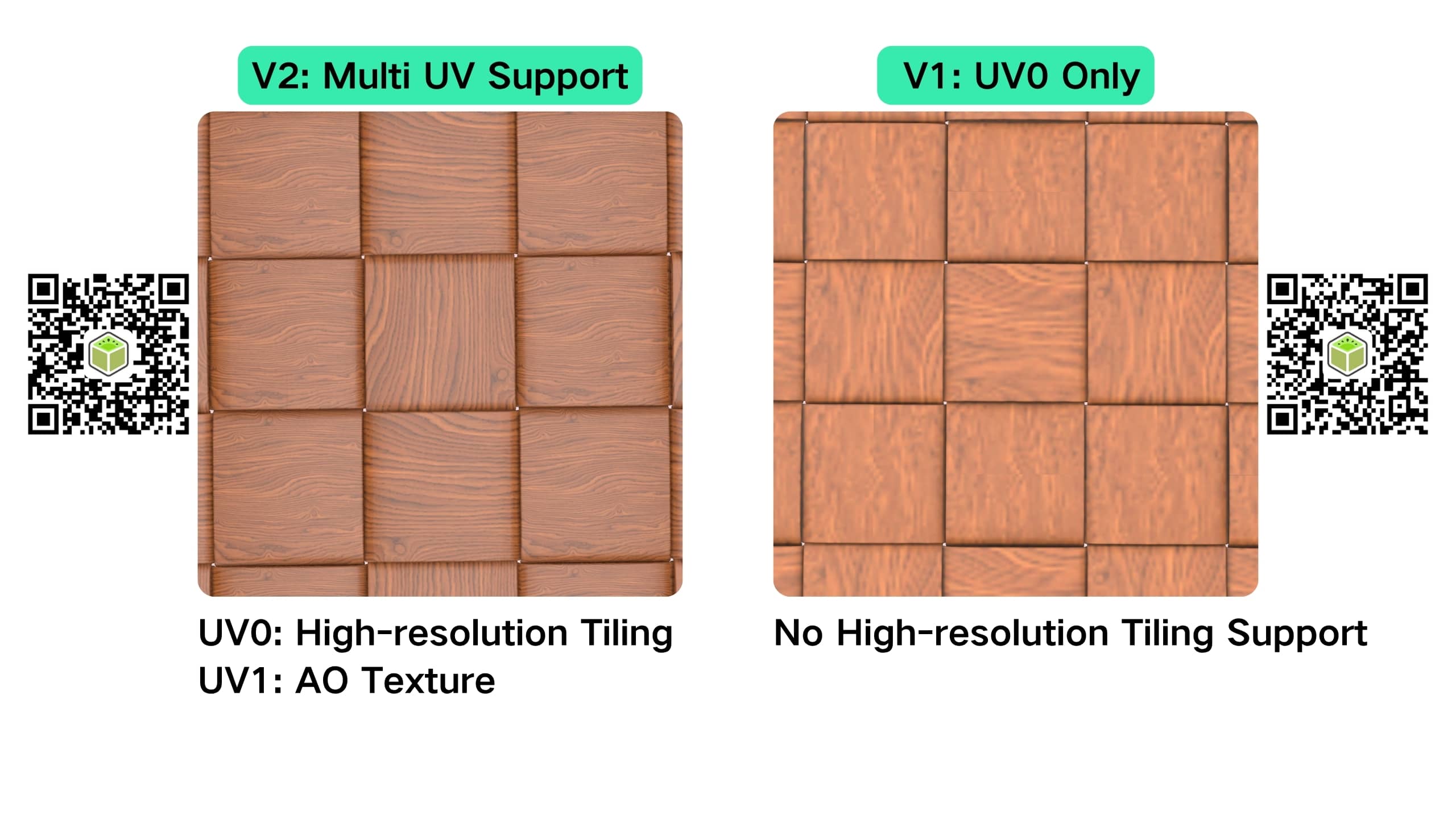

Multi UV		Texture Property	✅	✅	✅
